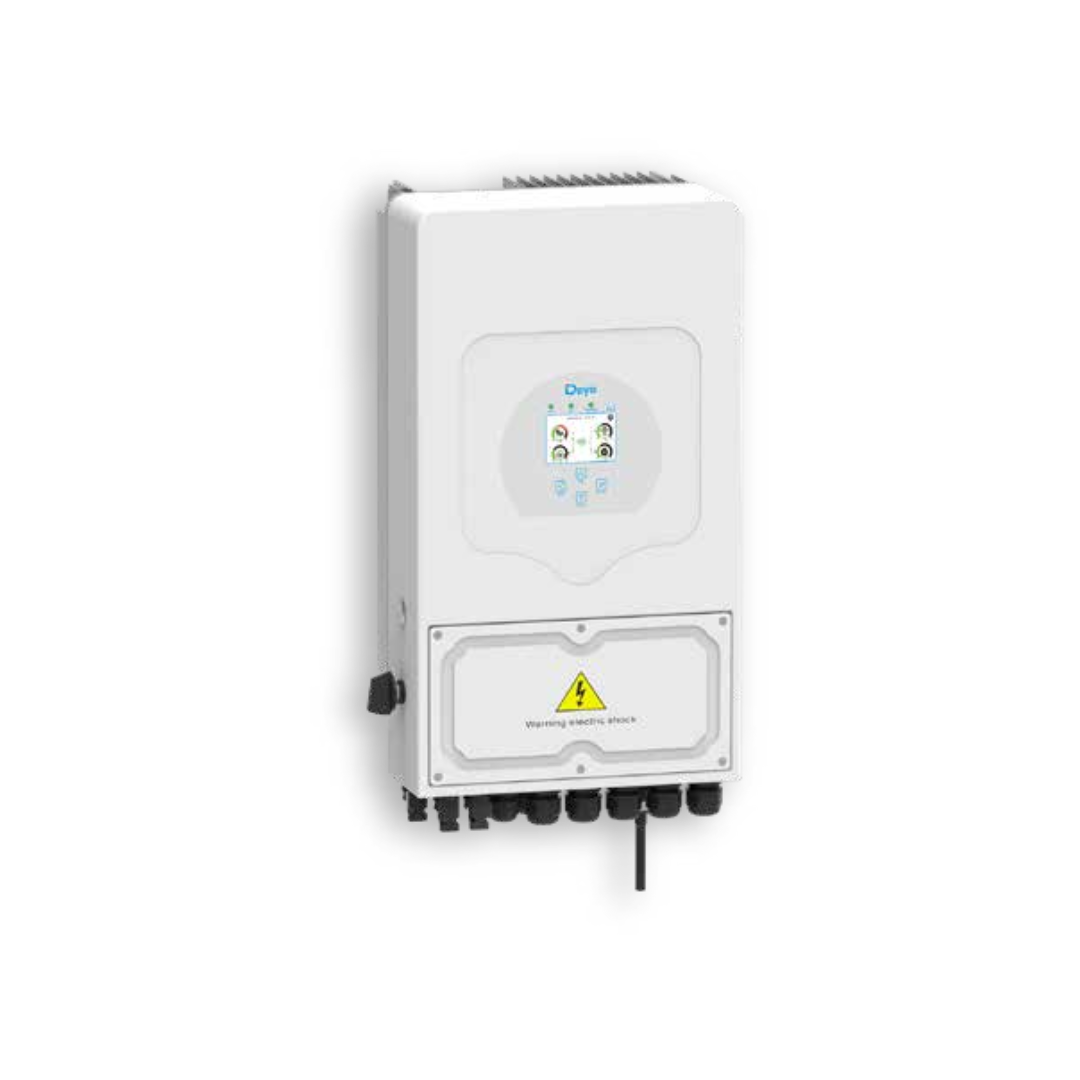

Hybrid Inverter

Type: Hybrid inverter (AC coupling)
Functions: Suitable for both on-grid and off-grid applications, supports multiple batteries in parallel
Battery Type Supported: Lead-acid or Lithium-ion
Charging/Discharging Strategy: Self-adaptation to Battery Management System (BMS)
Inverter Topology: Non-Isolated
Cooling: Smart cooling
Inverter Protection:
- Anti-islanding protection
- PV string input reverse polarity protection
- Insulation resistor detection
- Residual current monitoring
- Output overcurrent protection
- Output short-circuit protection
- Surge protection (TYPE II for DC, TYPE III for AC)
Display: Colorful touch LCD, IP65 protection
Communication Interface: RS485, CAN
Max. Efficiency: 97.6%
Warranty: 5 Years (10 Years Optional)
